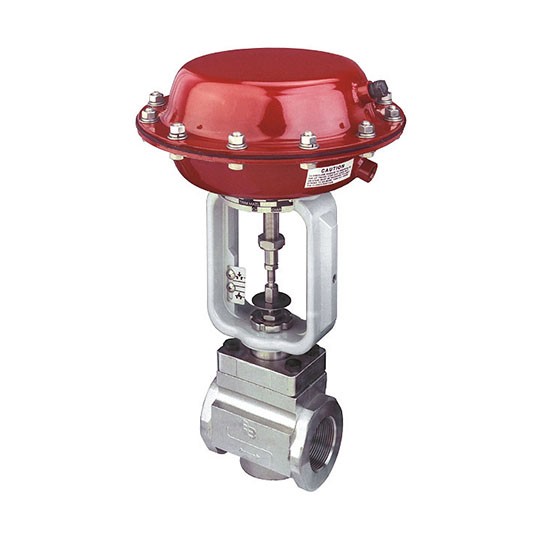

Globe style control valve ORION 900

Clamped between flanges with NPT internal threads. This series of valves is especially suited for the harsh demands of certain process industries. These valves are designed for modulating control of liquids, vapors and gases in industrial applications where performance, quality and small physical size are important.

The rugged, corrosion-resistant construction offers features and performance normally found in more expensive designs. The compact, high performance, all-steel actuator, along with standard body assembly construction of stainless steel, is designed to provide years of service and simple easy maintenance. A few more standard features include: adjustable spring preload, adjustable travel stop, heavy body cross section and replaceable seals on all reduced innervalves.



Globe_style_controll_valve_Badger_ORION900

Product information

Techical specification

  • DN 25-DN 50
  • 50 bar
  • -73°C - +538°C
  • 22 - 0,004
  • Stainless Steel
Document Description File type Size
Data sheet Badger Meter ORION 900 English
PDF
944.48 KB Download
