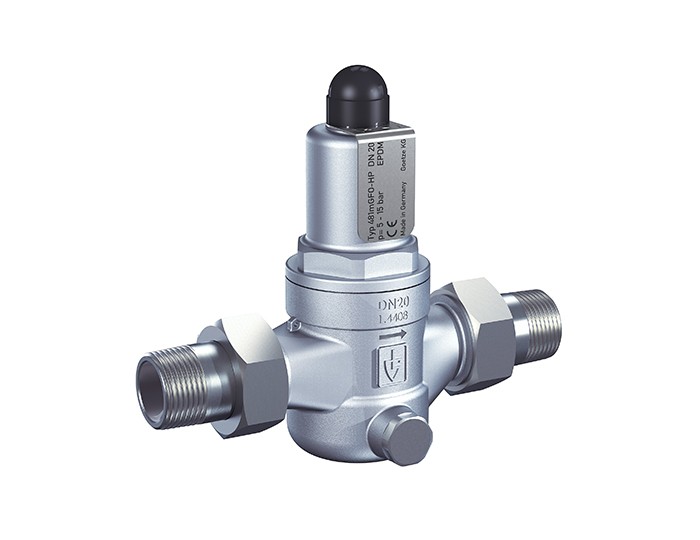

Safety valves series 481

New applications can now be covered by Goetze’s well-proven, robust pressure reducing valve with threaded connections now that they have extended their gunmetal series 681 to include a stainless steel version. The new 481 offers all the advantages of the 681 – while at the same time withstanding very critical and aggressive media and environments. Additional outlet pressure ranges of 0,5 to 2 bar and 5 to 15 bar make this valve suitable for an even wider range of applications.

481

Product information

Techical specification

  • 1/2" - 2"
  • Inlet pressure: up to 40 bar Outlet pressure: 0,5 to 15 bar
  • - 20°C to + 120°C
  • Stainless steel
  • CE marked
Document Description File type Size
Data sheet Goetze 481 English
PDF
977.96 KB Download
